Item | Value |

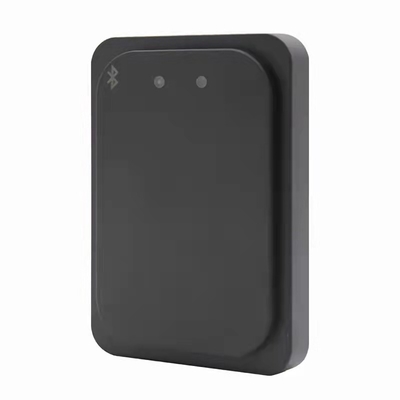

Product name | Wireless Bluetooth radar vehicle detector for boom barrier |
Voltage | DC9V-36V (standard 12V) |
Vehicle detection probability | >99.99% |
Pedestrian detection probability | >99% |
Horizontal beam | 120° |
Vertical beam | 15° |
Response time | 100ms |
Dimension | 80(L)X62(W)X20(H) |
Weight | 120g |
Signal output | witching quantity |
Relative humidity | At 25℃, the relative humidity is 98% |
Use for | For Car Parking System Boom Barrier |
Power consumption | 1.6W~1.8W |
Detection level range | -1m ~1m (adjustable) |
Detect distance | 0.3~6m (adjustable) |
Detect object | Man and car |
Working voltage | DC10~16V |
Waterproof | IP67 |
Working temperature | -40℃ ~+85℃ |
Frequency | 77GHZ~81GHZ |
Antenna gain | 10dbi |
Antenna transmitting power | 12.5dbm |
MTBF | MTBF>18000 hours |
