Automatic Storage And Shuttle Solution Clad-rack Warehouse for Kumho Tyre

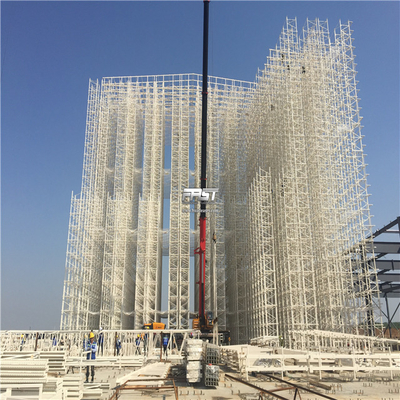

--This is one project we did for a famous manufaturer of Tyre:Kumho Tyre in China.It's the one of the highest clad-rack automated warehouse in China with 42m height.
--There is steel platform infrontof the ASRS,we separate the input & output into two layers mode. Adopting circular AGV uninterrupted operation for achieving compact and highly efficient quipment operation mode.
Production Information
| Type of ASRS | Unit Load, Mini Load |
| Storage Modules | Pallet, Bin, Wire Basket, or other Containers |
| Applied Pallet Dimension | 800×1200, 1000×1000, 1000×1200, 1100×1100, 1100×1200, 1200×1200, or Customized |
| MiniLoad Applied Box dimension | 600×400, 800×600mm |
| Shuttle Power Supply | Lithium Battery |
| Load Capacity | 1500kg (2000 Optional) |
| Position Equipment | Beam Detection; Pallet Push/pull control; Laser rangefinder by default; Absolute encoder |
| Operational Modes | Automated Mode(without on-board operator); Semi-automated mode; Manual Mode(with on-board operator) |
| Standard Conveyor Heights | 600/900/1100mm |
| Conveyor Speed | 10-20m/min |
