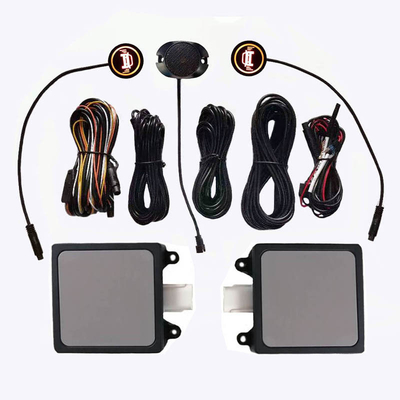

Parking Line Bsm Schematic Car Drive Speed ​​Radar Aid System 77Ghz Blind Spot Motion Detector Sensor

2 Sets
MOQ
$368.00(2 - 99 Sets) $299.00(100 - 499 Sets) $286.00(500 - 999 Sets) $278.00(>=1000 Sets)
Price
Parking Line Bsm Schematic Car Drive Speed ​​Radar Aid System 77Ghz Blind Spot Motion Detector Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Year: 1998-2016, 2015-2016, 2012-2016, 2011-2012, 2007-2016, 2011-2016, 2006-2014, 2010-2014, 2007-2014, 2011-2014, 2005-2009, 2014-2016, 2004-2012, 2009-2012, 2005-2012, 2002-2012, 2010-2012, 2006-2012, 2007-2016, 2015-2016, 1998-2016, 2011-2016, 2007-2016, 201
Model: Defender Pick-up, LR4, RANGE ROVER, Discovery V, LR2, Defender, RANGE ROVER III, Range Rover Velar, Defender Station Wagon, Defender Pritsche/Fahrgestell, Discovery IV, DISCOVERY Sport, LR3, Discovery, Range Rover IV, Discovery III, Range Rover Evoque, FRE
Type: Parking Sensor, Other, Parking Sensor System, Monitor
Car Fitment: Land Rover
View Angle: >180°
Function: Parking Line, Blind Spot Detection Warning
Power: Standard
Voltage: DC 12V
Warranty: 12 Months
Model Number: ZPB77
Product Name: Microwave Blind Spot Detection Radar Sensor
Sensor: 2 Radar
Working Voltage: DC 12V
Working Temperature (Deg.C): -30℃-~60℃
Waterproof Rate: IP 67 Grade
Fit For: Bus, Truck, Car
Radar Wavelength: 77ghz
Alarm Type: Buzzer And Led
Detection Range: 0-50M
Certification: Ce
Basic Infomation
Certification: ce
Model Number: Defender Pick-up, LR4, RANGE ROVER, Discovery V, LR2, Defender, RANGE ROVER III, Range Rover Velar, Defender Station Wagon, Defender Pritsche/Fahrgestell, Discovery IV, DISCOVERY Sport, LR3, Discovery, Range Rover IV, Discovery III, Range Rover Evoque, FRE
Payment & Shipping Terms
Packaging Details: 28x23x10cm 1.5kg/set
Product Description
Product Description

Production Function

1.BSD Blind Spot Pre-warning (Detection range: Horizontally 4 meters, longitudinally 15 meters) Working Logic: Vehicle's own speed is higher than 10Km/Hour, BSD pre-warning mode is started:
A. If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the monitoring area, and the warning is canceled.
B. If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the monitoring area, and the warning is canceled.
2.LCA Vehicle Approaching Pre-warning (Detection range: Horizontally 4 meters, longitudinally 50 meters) Working logic: Start after powering on, the target object enters the alarming range and the relative collision time<3.5 seconds, LCA vehicle approaches the pre-warning mode is started:
A. When the target object enters the alarming scope (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the alarming area, and the warning is canceled;.
B. When the target object enters the alarming scope (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
3.AOA Overtaking Pre-warming (Detection range: Horizontally 4 meters, longitudinally 15 meters) Working logic: Vehicle's own speed is higher than 10km/Hour, AOA overtaking pre-warning mode is started:
A. This vehicle positively overtakes the other vehicles with speed and the target object is within the alarming scope, it will produce the Level 1 Warning until the target object leaves the warning area, and the warning is canceled.
B. This vehicle positively overtakes the other vehicles with speed, the target object is within the alarming scope and the turn signal lamp on the corresponding side is turned on, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
4. RCT Reversing Pre-warning (Detection range: Horizontally 5 meters, longitudinally 5 meters) Working logic: Put into R (reversing gear), RCT revering pre-warning mode is started: When the target object enters the alarming scope, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
Item name
Blind Spot Detection System
Function
microwave blind spot detection radar sensor
Working voltage
10-36v
Working frequency band
77-81GHZ
Working temperature
-40℃-~+80℃
Power consumption
< 2W
Water-proof level
IP67
Distance resolution
0.5M
Range accuracy
24GHZ
Car make
Superior to 0.18m
Detection distance
50m
warranty
12Monthes

Operation Instructio:

1. After vehicle ACC powers on, the system will immediately enter the environmental adaptability detection prior to entering the working stats. After the vehicle stops, the radar will stop working.
2. If not turning on the turn signal lamp and double-flash warning lamp, the system will stay in the Level 1 warning status.
3. If turning on the turn signal lamp and double-flash warning lamp, and putting into the R reversing gear, the system will stay in the Level 2 warning status.
Detailed Images
The radar install:
Remove the rear bumper, fixed at 15- 25 degrees, H=30-100cm.
