Light source | Infrared laser(905nm) | ||
Laser safety level | Class 1 (GB7247.1-2012, Eye-safe IEC) | ||
Laser spot diameter | 10 mm | ||
Laser spot divergence angle | 10.0 (H) × 2.0 (V) mrad | ||
Scanning angle | 360° | ||
Scanning frequency | 12.5 Hz | ||
Angular resolution | 0.5° | ||
Sensing range | 0.1m ~ 20m | ||
10% reflectivity range | 15m | ||
Ambient environment | Indoor usage, Anti-dusty, Anti-sunlight | ||
Rain fog and smoke penetration | Supported | ||
Measurement error | System error (typical) | ±5 cm ( 1~15 m ) | |
Statistical error (1σ) | ±2 cm ( 1~15 m ) | ||
Built-in application Regional monitoring | Monitoring mode: Point number monitoring / target width monitoring / contour monitoring | ||
Monitor signal type: Attention / warning / alarm | |||
Number of regional groups: 16 groups | |||
Number of concurrent work area group: 16 (max) | |||
Able to detect any shape of targets, normal target self-learning function | |||
Device self-diagnosis | Contents: Window cleanliness / blocking / high & low temperature Output mode: Indicator + TCP message | ||
Ethernet | Rate: 10/100 Mbps; Network protocol: TCP/IP; Function: device configuration / measurement data output /monitoring signal output | ||
I/O Input | Quantity：4; Type: Switching level input; High level range：10~28 V DC; Low level range: 0~5 V DC Preset function: Monitoring area selection (0x0 - 0xF); Regional monitoring dismiss / forced alarm, active level: high level | ||
I/O Output | Quantity: 4; Type: PNP switch output ; Output voltage: Supply voltage; Power on: OFF; Device ready (OUT), active state: ON (High level), regional monitoring signal output (OUT2/OUT3/OUT4) active state: configurable | ||
Indicator light | Quantity: 2; Definition: ERR (Device alarm: Fault/Abnormal ,window dirty / block, high and low temperature, Dense fog); HTR (operation status indication: monitoring signal / self-learning ） | ||
Operating voltage | 12 ~ 28 V DC | ||
Power consumption | 3.8W @DC 24 V | ||
Outer covering protection rate | IP65(GB4208~2008) | ||
Insulation resistance | 1ＭΩ(GB16796~2009.5.4.4) | ||
Electrical strength | 0.5KV(GB16796~2009.5.4.3) | ||
Weight | 0.5 kg | ||
Dimension(L×W×H) | 86 ×85×59.5(mm) | ||
Electromagnetic compatibility (EMC) | Electrostatic discharge | 6KV (GB/T17626.2~2006，class 3) | |
Fast bursts | 1KV (GB/T17626.4~2008，class 2) | ||
Electromagnetic field radiation immunity | GB/T17626.3~2006，class 2 | ||
Surge immunity | GB / T17626.5-2008, Power interface: 1.2 / 50μs, 2KV / 1KA (Class 3) Ethernet interface: 10 / 700μs, 1KV / 25A (Class 2); I / O interface: 1.5 / 50μs, 0.5 KV / 0.25 KA (Class 1) | ||
Impact | GB/T 2423.5 | ||
Single impact | 15g, 11ms | ||
Continuous impact | 10g, 16ms | ||
Vibration | GB/T 2423.10 | ||
Frequency Range | 10Hz~150Hz | ||
Amplitude | 5g | ||
Humidity | 93%, +40℃, 2h（GB/T 2423.3） | ||
Operating temperature range | -10℃~+45℃ | ||
Storage temperature range | -30℃~+70℃ | ||
Ambient illumination range | ≤70,000lux | ||

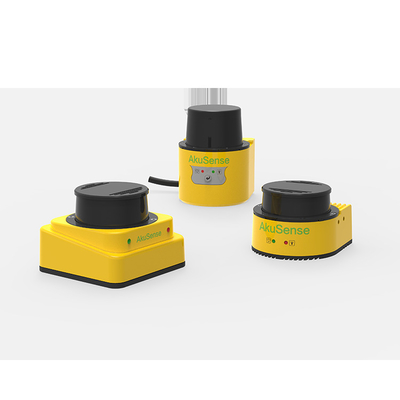

Model NO. | AS-11C | ||
