30M Detection Range Millimeter Wave Microwave Radar Detector Kit, Anti-collision Radar System W 10inch Display, Rear Camera 10inch LCD Digital Screen

MC-1010 MICROWAVE Heavy duty anti-collision radar system with LCD monitor display

1, 30m range detection with microwave millimeter wave high sensitive sensor
2, Work with waterproof ,night vision sony ccd camera
3. work with 10" digital lcd monitor

4, Industrial design metal housing control box.
5, Beep alert 5steps
7, DC12-32V wide operation voltage for all vehicles
8, Sensor with rubber or metal bracket optional
9, Waterproof, anti-shock, anti-interference can work in harsh environment
10, Ideal for various vehicles for back side blind zone detection

Control Box spec

Rated voltage: 12-32V
Rated Power: <8W
detection range: 0.3 ~ 30m
Display Resolution: 0.1m
Detection angle: single angle 70 ° ± 15 °

Operating Temperature: -40 ° C ~ +80 ° C
Waterproof: IP66
Shockproof: 10G

Sensor detection distance:

Millimeter sensor detection range 30M

millimeter sensor detection angle 35± 15 ° U/D/L/R

ultrasonic sensor detection:

Concrete wall: 16.4ft(5m)

Vehicle: 16.4ft(5m)

Person: 11.48ft(3.5m)
Post(75mm diameter): 9.18-9.84ft(2.8-3.0m)
ultrasonic Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R
Waterproof rate: IP67
Sensor installation height: 0.6M--1.3M
Sensor installation space between two sensors: 0.2M--0.3M
vehicle width ≥3M can install 6 sensors

Sensor with metal bracket/rubber bracket optional

Sensor extension cable <50M

Monitor Spec

10" waterproof metal housing LCD Monitor

Ratio: 16:9/4:3
Pixel: 1024*600 /1280*800

System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way optional
Backup: V2 auto reverse
View angle: U/D/L/R
Power supply: DC10-36V

Operating temp.:-10°C ~ 65°C
With U bracket, sunshade

Camera Spec
ImageSensors: 1/3" HD SONY CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
Resolution:420TV lines
Minimum Illumination:0.2Lux / F1.2(0Lux IR ON)
Pin Lens:f=2.5mm
Lens Angle:120°
Power Supply:DC12-32V
Current Consumption:≤300mA
Operating Temperature:-20°C~70°C ,RH95% MAX

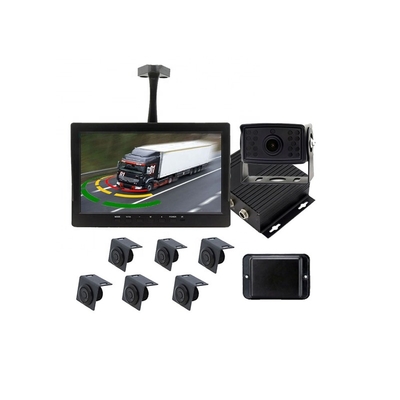

Packaging

• control box x 1
• millimeter wave sensor x 1
• ultrasonic sensor x 6
• 5m video cable x 1
• 20m video cable x 1
• 10inch digital LCD monitor x 1
• SONY CCD camera x 1
