Two Millimeter-wave radars, one on either side of the car, are mounted in the rear bumper.At speeds above 30km/h, these radars monitor the traffic in a zone which extends from around 70m behind the car to a point just ahead of the driver, and includes the so-called ‘blind-spot’.
However, The Side Assist does more than simply check for vehicles in this blind-spot. By measuring the distance and speed of vehicles approaching from behind, the ADT Side Assist is able to calculate whether or not a change of lane would be hazardous.
If there is no apparent intention by the driver to change lane, a light situated in the door mirror on the relevant side of the car is illuminated. The light provides information to the driver that there is a potential threat.
If the driver uses the direction indicator to signal that he intends to change lane, the warning light flashes more intensely, signifying to the driver that the manoeuvre he is about to make is potentially dangerous.
The system works when the car is overtaking as well as when it is being overtaken, to ensure that the car can be safely returned to its lane.
Blind Spot Detection System Functions
- 24GHz mircrowave sensing technology
- Detection range 3mx8m for vehicle/motorcycle in adjacent lane
- Visual warning via LED indicator or laser

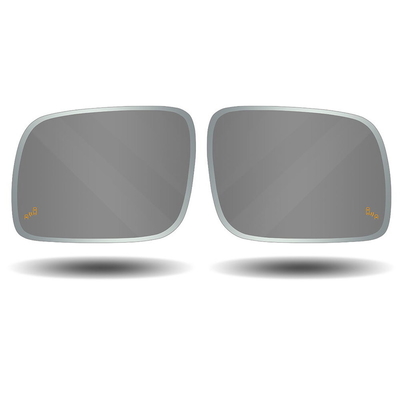

- LED indicator can be individual or built in A pillar/side mirror
- Audible warning when turn signal is on
- Only warn when other vehicle is approaching to avoid false alarm
- With CAN interface, only work above certain speed, e.g., 20Kmh
- Work under adverse weather conditions
- Supplied side mirror with OEM quality
- Tailor-made sensor mounting brackets for different cars
- No change on vehicle appearance
- Door-opening Collision warning function optional
Blind Spot Detection System Instruction & Installation Guide:
bsm Features
Millimeter Blind Spot Monitoring System (Blind Spot Information System) is designed with latest microwave technology to warn driver of other vehicle or motorcycle approaching in the next lane, which is possibly in blind spot from side mirror.
Millimeter Blind Spot Monitoring System is activated automatically when vehicle speed is more than 10Km/h, LED indicator turns on if sensor detects another vehicle or motorcycle in the next lane coming closer. If you switch on turn signal at the same side when object is detected, LED indicator will flash, and you will also hear 3 beeps. If you switch on emergency button (both sides turn signals turn on), LED indicator will not flash. When vehicle speed is lower than 20Km/h, system will stop work.
Millimeter bsm Blind Spot Monitoring System Specifications
Working Voltage: 10V-16V
Max Working Current: 250mA
Work Temp: -30°C - 70°C
Detection Rang: 4m-6m
Parts & Wiring
System is composed of 2 microwave sensors, 1 control box, 2 LED Indicators and 1 buzzer.
