Product description

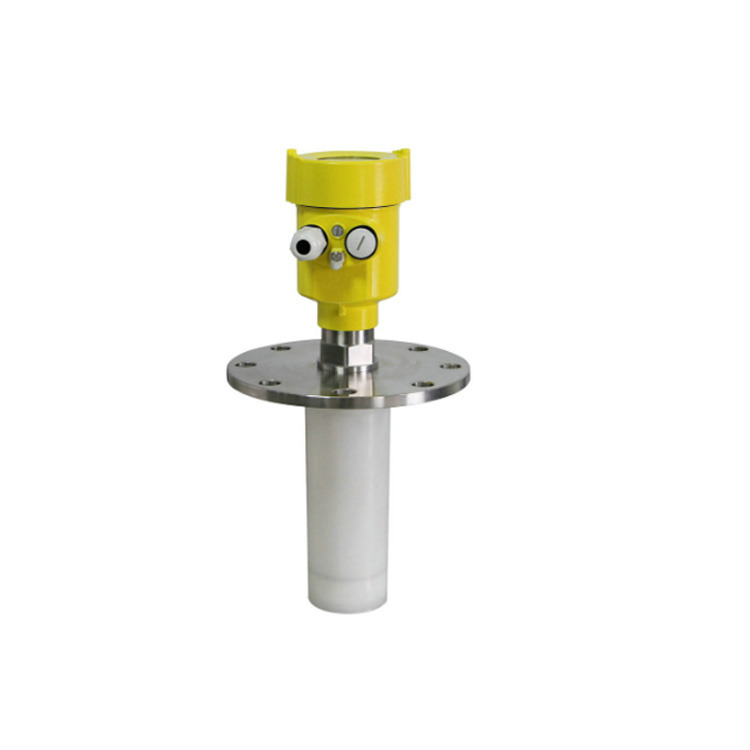

radar level sensor is a non-contact, microprocessor-controlled, highly easy to install and maintain digital level meter. The antenna emits a very narrow and low-energy microwave pulse signal, and the pulse signal is transmitted in space at a speed of light, and is reflected by the measured medium, and the reflected signal is received by the meter, and the time interval and the reference plane of the transmitted pulse signal and the received pulse signal are transmitted. The distance from the surface of the measured medium is proportional to the measurement of the distance between the antenna and the surface of the medium by measuring the time interval between transmission and reception.
Self-contained LCD display for easy on-site setup. It can meet most of the level measurement requirements without touching the industrial medium, thus completely solving the shortcomings such as winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type. Therefore, it can be widely used in plastics, coal, grain, sewage treatment, petroleum, chemical, food and beverage, bio-pharmaceutical industries, etc. Non-contact measurement, corrosion resistance, convenient installation, high measurement accuracy, fast response, long service life and good stability. It has a large measuring range and can be used to measure the height of liquid and solid materials. It is widely used in the measurement of material levels such as granaries, oil tanks, chemical raw material tanks, sewage pools, corrosive environments and high hygienic requirements.
Main Features
1. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
2. Small antenna size, easy to install; Non-contact radar, no wear, no pollution.3. Serious dust environment on the high level meter work has little effect.
4. The measuring range is smaller, for a measurement will yield good results.
5. Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
6. A shorter wavelength, the reflection of solid surface inclination is better.
7. High frequency, measurement of solid and low dielectric constant of the best choice.
8. High signal-to-noise ratio, the level fluctuation state can obtain better performance.
| Application | Hygienic liquid storage container, strong corrosive container |
| Measuring range | 20 meters |
| Accuracy | ±3mm |
| Medium temperature | -40~150°C |
| Ambient temperature | -40~80°C |
| Process pressure | Atmospheric pressure |
| Frequency range | 26GHz |
| Process connection | flange |
| Process seal | Integrated PTFE/PVDF |
| Antenna type and material | 316L+PTFE cone antenna |
| Signal output | 4...20mA/HART (two lines / four lines) |
| Communication function | RS485/Modbus |
| Power supply | 24VDC two-wire common type power supply:18~36VDC, ripple voltage:100mV.vp.p, maximum current:22.5mA |
| 24VDC two-wire intrinsically safe power supply:18~36VDC, ripple voltage:100mV.vp.p, maximum current:22.5mA | |
| 24VDC two-wire intrinsically safe + explosion-proof power supply:20~36VDC, ripple voltage:100mV.vp.p, maximum current:22.5mA | |
| 24VDC two-wire power supply: 20~45VDC, power consumption: 3W | |
| 24VDC four-wire power supply: 110~260VAC,50/60Hz, power consumption: 3W | |
| Protection level | IP67 |
| Safety certificate | Intrinsically safe explosion: Exia II CT6, Intrinsically safe + explosion-proof: Exd ia II CT6 Gb |
Product details
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
A:We professional provide OEM &ODM service.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page. Or contact us directly at (Wechat:+8613771588070),you will get the reply within 1 hour, and the quotation will send to you according to your requirements.
Q. How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitableproducts and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water ,oil or others.
