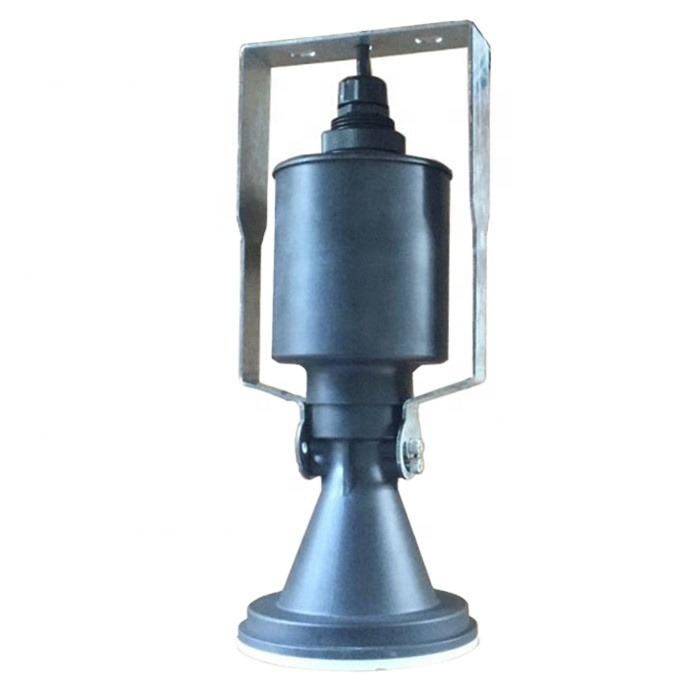

4-20mA water level radar level transmitter radar level sensor for water level monitoring system
Dimension
|
VRPWRD92HT/95HT/93HT Features |
Strong anti-interference ability,not affected by temperature, humidity and wind, high accuracy, easy installation and calibration, small beam angle, low energy consumption |
|
Typical Application |
mainly used for water level monitoring of lakes, rivers, reservoirs, open channels and tides of ocean, etc. |
|
Measuring range |
20m/30m/50m |
|
Process connection |
G1 1/2” A thread; Flange |
|
Process temperature |
-40 - +100℃ |
|
Process pressure |
Atmospheric pressure |
|
Accuracy |
±3mm/±5mm/±10mm |
|
Repeatability |
±1mm |
|
Frequency range |
26GHZ |
|
Explosion proof |
Ex ia IIC T6 Ga |
|
Enclosure protection |
IP67 |
|
Signal output |
4-20mA+HART, 24V DC (2-wire/ 4-wire); 220V AC (4-wire) RS485/Modbus |
Installation
Note: 1. : Reference surface; 2. : Extension length of support
|
Medium name |
|
|
Medium state |
◊ Liquid ◊ Solid |
|
Solid type |
◊ Lump ◊ Particles ◊ Powder ◊ Fly ash |
|
Measuring range |
mm |
|
Process temperature ℃ |
|
|
Process pressure kg/cm2 |
|
|
Process connection flange size |
|
|
Mounting nozzle height |
mm |
|
Communication protocol |
◊ HART ◊ RS485 ◊ N/ A |
|
Exproof type |
◊ Ex ia (Intrinsically safe) ◊ Ex d (Explosion isolation) ◊ N/ A |
|
Cable entry type |
◊ M20*1.5 ◊ 1/2’’ NPT |
FAQ:
1. Price:
The price is based on the functions on request, and also it is negotiable according to the quantity in one PO.
2. Sample:
Sample is available with special discount.
3. MOQ:
The MOQ is 1 unit.
4. OEM:
Welcome, your requested LOGO can be put on the label of instrument
5. Warranty:
The warranty period is 18 months from date of delivery or 12 months upon arrival.
6. Technical service:
We provide positively technical support for necessary documents or drawings in need, and also prompt response for any problem at the working site. We also offer technical assistance in efficient ways.
About payment or other questions:Please contact with us in details.
