Features

Specifications

Warranty: 1 Years

Customized Support: OEM

Model Number: F1

Type: Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters

Product Name: Turbine Flow Meter

Material: SS304; SS316L

Accuracy: Â±1%R,Â±0.5%R,Â±0.2%R

Power Supply: 24VDC /3.2V Lithium Battery

Output: 4-20mA /RS485/ Pulse

Basic Infomation

Model Number: F1

Payment & Shipping Terms

Packaging Details: Carton case

Supply Ability: 2000 Set/Sets per Month

Product Description

Products Description

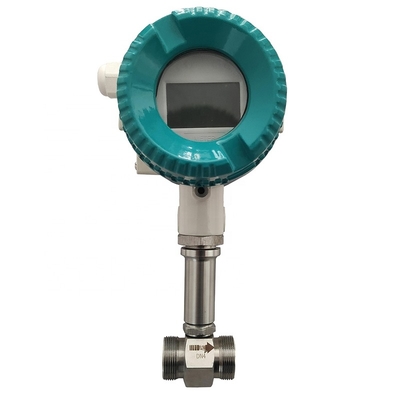

ss 304 ss316 flange turbine flow meter transmitter

Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. This signal is converted into engineering units (liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessory modules can be used to export the signal to other equipment. This type flowmeter is mainly used for liquid which don’t corrode with SS304, SS316, Al2O3, 2Cr13. And the liquid is clean no fiber, no particles. When connect with other indicating instrument, can realize definite quantity control and over flow alarm. Turbine meters are simple to operate and maintain, and in service worldwide as a reliable, cost-effective method for achieving accurate flow measurement. Turbine flow meters are designed to maximize throughout and minimize pressure drop, maintain high flow rates over an extended flow range and offer pulse output that is linear to the flow rate. The turbine meters also minimize fiscal measurement uncertainty by delivering high-frequency pulse resolution to account for minute increments of the flow rate.

Product Paramenters

Diameter	4～200mm
Accuracy	±1%R、±0.5%R、±0.2%R
Material	SS304; SS316L
Working pressure	0～4.0MPa
Working temperature	-20℃～+110℃
Ambient	Temperature: -10°C to +55°C Pressure: 86 to 106 KPa Relative Humidity: 5% to 90%
Power Supply	Sensor: +12V DC (Optional: +24V DC) Transmitter: +24V DC Field Display Type B: Integral 3.2 V Lithium Battery Field Display Type C: +24V DC
Output signal	pulse / 4~20mA RS485, MODBUS protocol / Hart
Explosion-proof level	Exd (ia) ⅡC T6Gb
Transmitter and Sensor protection	IP65 / IP67

Company Introduction

Company introduction

Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines. Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product. Our products range: 1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc 2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc. 3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc. 4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc. 5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc. 6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.

Certifications

Company Profile

Packing

Carton

Wood cases

Transportation

For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc. For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.

FAQ

1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor

4. why should you buy from us not from other suppliers?
20 years export experience. We are group company with Tianjin U-ideal Instrument Co., Ltd. More than 20years for products Research and development. 5000m2 factory, high-precision machines. Level gauge, flowmeter and pressure sensor have top quality

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
