MD-L is an important application of latter-day pressure sensor to measure liquid level or water depth by hydrostatics theory. It uses high precision sensitive element, precise temperature compensation technology and be equipped with special cable to keep it leakproofness.

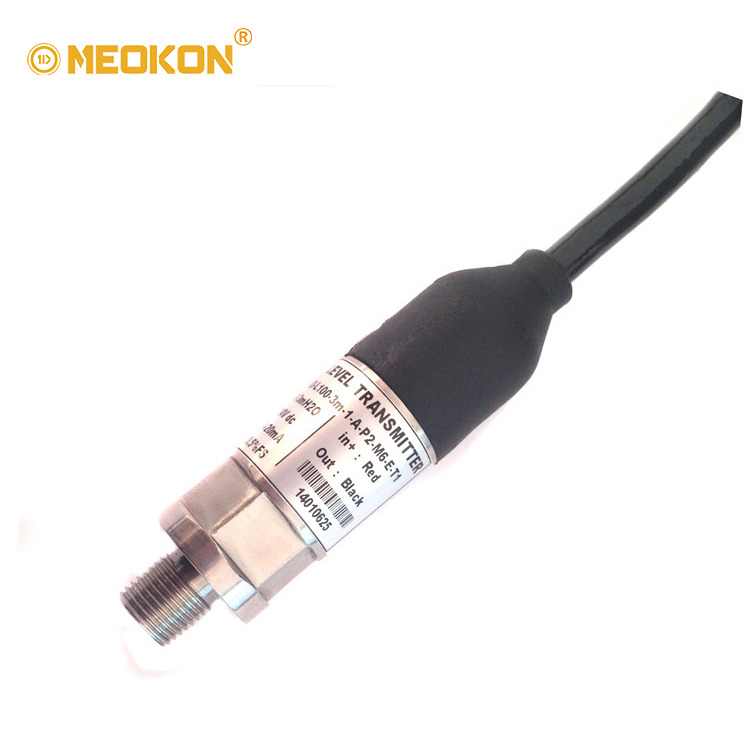

MD-L600 Mounted Liquid Level Transmitter It uses fixed screw design to make it easy to install. It is widely used in oil tank, moving water tank, oceangoing freighter, ships.
APPLICATION
Civil Pool
Hydrological and Hydraulic System
Level of other Liquid
Analysis of river/leak/pool
Oil Level of Locomotive, oil tanker
Marine Liquid Level
Liquid Level of Water Tank
Water Supply, Drainage of city
| Range | 0..1...2...5...8...10...100mH2O |
| Overload Pressure | 200% ; |
| Supporting | 2088 Industrial Shell |
| Transmission Distance | ≥1Km(supply 24V) |
| Acc. | 0.5%FS 0.25%FS |
| Long-term Stability | Typical:±0.1%FS/year |
Temperature effect on zero | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
| Operating Temperature | 0~80℃(Customized product to 100 ℃) |
| Compensation Temperature | 0~ 70℃ |
| Storage Temperature | -40~100℃ |
| Electric Protection | Reverse connect protection, Excess voltage protection |
| Protection Grade | IP68 |
| Measurement Medium | Liquid,gas, water, oil |
| Pressure Connection | Input Type; Mounted Type(G1/4, G1/2, M20*1.5, selectable) |
| Shell | Stainless Steel |
| Supply | 9-32VDC (Typical24V) |
| Output Signal | 4-20mA |
