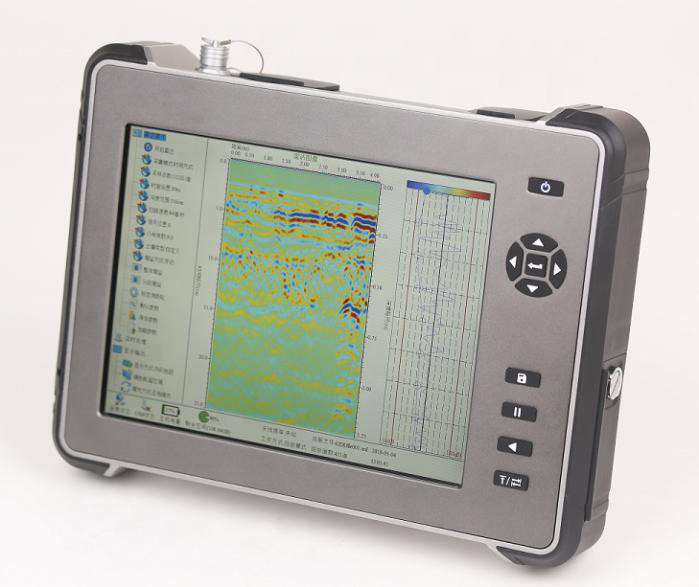

Features:
·Integrated host, no need to connect the notebook and other control terminals;
·Light weight, small size, engineering design, more suitable for field operation;
·Digital antenna interface, direct transmission of digital radar signal, signal less interference, higher signal-to-noise ratio;
·Automatic recognition of a full range of antennas, automatically set the radar parameters, without the user to carry out complex Settings;
Index parameters:
|
Performance indicators |
The sampling points |
256~8192 |
|
|
Range of time window |
0~8000ns |
||
|
Maximum scanning speed |
512 sweep per second (512 sampling points) |
||
|
Minimum time resolution |
5ps |
||
|
AD digits |
16 |
||
|
The system gain |
-10dB~+160dB |
||
|
Maximum emissivity |
800kHz |
||
|
Maximum stacking number |
16384 times |
||
|
Acquisition mode |
Time mode, distance mode, single point mode |
||
|
Continuous working time of a single battery |
≥4h |
||
|
The target position such as rebar can be repositioned |
|||
|
Objective function |
Chinese interface and operation menu suitable for Chinese people |
||
|
Automatic recognition of antenna and load acquisition parameters |
|||
|
Real-time FIR filtering and IIR filtering |
|||
|
Real time dc drift |
|||
|
Real-time background elimination |
|||
|
Real-time moving average |
|||
|
Overspeed alarm |
|||
|
Low power alarm |
|||
|
Save raw data |
|||
|
Mechanical and environmental indicators |
weight |
3kg |
|
|
volume |
314mm x 238mm x 64mm |
||
|
Protection grade |
IP65 |
||
|
Working temperature |
-20℃~+60℃ |
||
|
External interface |
USB3.0 interface, COM232 interface (connected to GPS), main control interface (connected to antenna) |
||
|
Battery capacity |
108Wh |
||
Radar antenna:
Features:
·Digital antenna, radar signal without long-distance transmission, less external interference, higher signal-to-noise ratio;
·Shielding antenna, effectively shielding external interference, improve the depth of detection.
Index parameters:
|
Volume: |
250cm×170cm×150cm |
|
Weight: |
1.3kg |
|
Center frequency: |
1600MHz |
|
Maximum repetition frequency: |
400kHz |
|
Depth range: |
0m~0.5m |
|
Coupling mode: |
The ground coupling |
|
Antenna type: |
Transceiver integrated shielding antenna |
|
Application areas: |
Building structure inspection, steel bar inspection |
Post-processing software:
Features:
·Full Chinese interface, friendly interface, simple operation;
·Various data processing methods, advanced algorithms, good data processing effect;
·In line with engineering data processing habits;
·Can generate highway, tunnel, bridge test reports in line with national standards;
·Seamlessly connects with Word and Excel;
·With one-button batch processing function, high data processing efficiency.
Data preprocessing:
·Open, close and save radar data files;
·Slice and merge radar data files;
·Data format conversion;
·Edit file header, data resampling, channel standardization;
·Tag editing.
Data processing:
·Level the ground, adjust the zero point, find the ground;
·Correction zero bias;
·Gain adjustment;
·Digital filtering, background elimination, inter-channel averaging, inter-channel balancing;
·Mathematical operations, predictive convolution.
Engineering evaluation:
·Layer tracking, layer thickness calculation, layer thickness report;
·Mark exceptions, edit exceptions and abnormal reports;
·Mark target, automatically find target, edit target, target report.
Display function:
·Color map, stacking map display;
·Palette Settings;
·Display gain Settings;
·Image scaling;
·Abnormal annotation and editing;
·Horizon modification.
Display function:
·Synthetic data;
·Image scaling and rotation;
·A-scan, B-scan, and C-Scan sections are displayed.
Auxiliary function:
·File batch processing;
·Image capture and export;
·File comparison;
·Notepad, calculator, drawing gadget.
Project Case Map:
Bridge steel mesh and strand inspection
Building steel mesh
Double steel mesh
