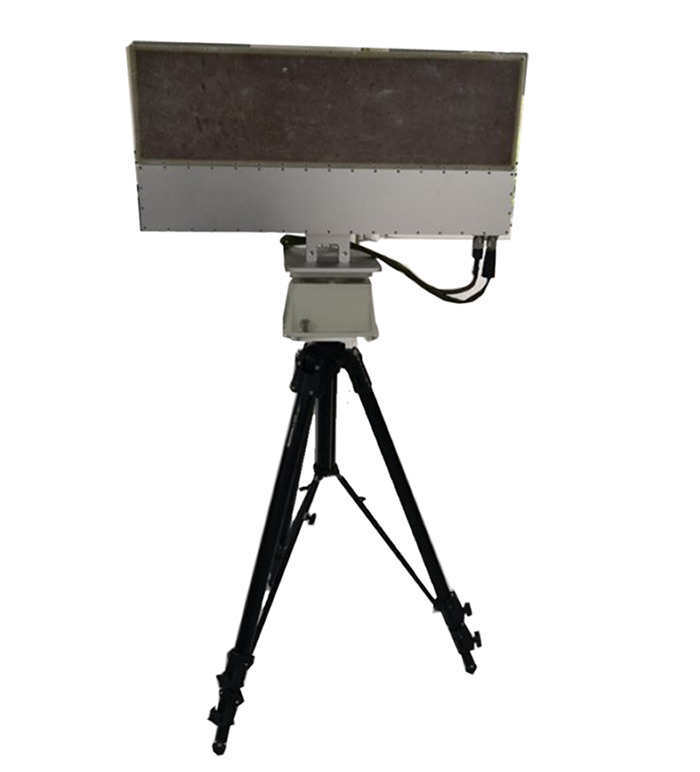

6km UAV 3D Detection Radar Drone Search Detecting Radar 880*510*240mm

6KM 3D UAV Detection Radar

KU07 Low Altitude Surveillance Radar is KU band liner modulated multi-beam pulse system with wide-angle frequency sweeping waveguide antenna, azimuth mechanical scan and elevation phase scan, used for full air domain coverage with single radar. It can replace high cost phase array radar.

With 360° mechanical scanning technology, KU07 can perform all-weather detection of high and low speed objects. With highly accurate azimuth data, combined with EO/IR cameras, it can automatically track and identify UAVs day and night, and selectively interrupt the downlinks of UAVs with operators. Moreover, adopting CW technology, KU07 has higher detection efficiency with lower transmission power and less vulnerable to interception.

Features:

360^o azimuth mechanical scan, 0-60^oelevation frequency scan

All weather detection of mini, low altitude, high/low speed targets

Can detect distance, azimuth, elevation angle and speed

GIS and sea chart fusion into the display interface

Can detect and identify multiple targets selectively and precisely in noise backgrounds

Can work with EO/IR system cameras for visual identification of drones

Can work with RF jammer to neutralize various drones manually or automatically

Multi-beam scan and CW technology, higher detection efficiency, lower power and less interception

Specifications:

Frequency band: Ku

Detection range: (Pd=0.9 Pt=10^-6):

Mini drone (RCS=0.01m²) 6km

RCS=1m² 10km

RCS=10m² 14km

Range and scope: 0.075 to 30km

Detection Azimuth: 0-360^o

Detection Elevation: 0-60^o

Distance accuracy: ≤10m

Azimuth accuracy: ≤0.3deg

Elevation accuracy: ≤0.5deg

Distance resolution: ≤15m

Azimuth resolution: ≤2deg

Elevation resolution: ≤8deg

Track mode: TWS

Target number: 200

MTBF: ≥2000 hours

MTTR: ≤0.36 hours

Continuous work time: 24 hours

Power consumption: 280W
