Short Range Handheld Land Surveillance Radar Detecting Pedestrians, Moving Vehicles 350*320*100mm

Short Range Portable Ground Surveillance Radar

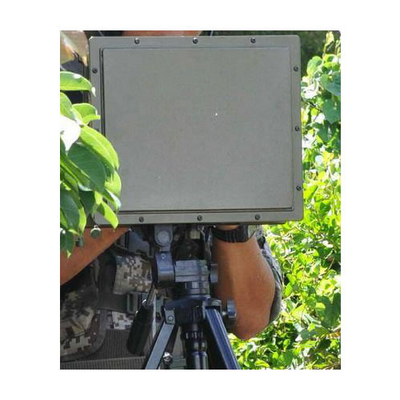

KU01 is portable short range ground surveillance radar developed to detect moving people and vehicles in a short range, widely applied for border guard, SWAT detection, anti-terror and riot, coast guard and battlefield surveillance.

Features:

Phased array Ku band surveillance radar to detect walking persons and moving vehicles in short range

Track while scan (TWS)

360^o coverage with electronic scan and mechanical scan

Uninterrupted operation under all weather conditions, day and night

PC-based display and control unit

Extremely lightweight, one man portable

Fast deployment and easy operation

Operated by AC power or DC power

Background digital maps, good user-friendly interface

Specifications:

Work mode: electronically scan

Frequency band: Ku

Detection range: Man (0.5m2)>500m, Vehicles (5m2)>1km

Transmit power: 1w

Azimuth coverage: 360^o

Detection speed: 0.5m/s to 50m/s

Scan modes: scanning (electronic scan + mechanical scan), staring (electronic scan)

Track mode: track while scan (TWS)

Multi-target tracking: >200

Scan speed: >0.5s

Azimuth accuracy: <1^o

Distance accuracy: <10m

Speed accuracy: <0.5m/s

Work temperature: -40 to +55^oC

Protection degree: IP66

Interface: RJ45, 10/100M Ethernet

Size: 350*320*100mm
