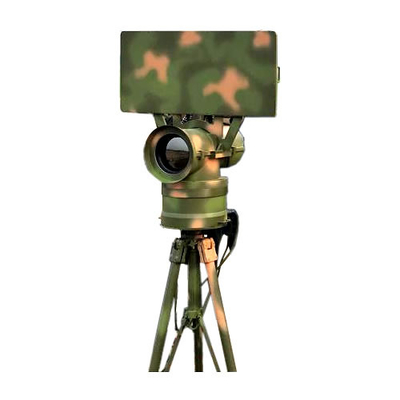

Thermo-magnetic Camera Integrated Surveillance Radar
KU03 consists of the front-end sensor (RF, video monitoring) and the back-end control system. The front-end sensor is mainly composed of radar, thermo-magnetic imager, video server, controller, etc. The back-end system consists of computer and monitoring/processing software. The radar detects targets in the specific range, transmits the detected target information to the monitoring terminal, and display on GIS system. When the target enters the video monitoring range, the operator aims the camera towards the target, and transmits the video data to the control center.
Applications:
Tactic detection and identification, night surveillance and monitoring, combating smuggling
Monitoring roads, pipelines, ports and borders etc., also intrusion warnings in important areas
Features:
Detection and identification of target by video and radar integration
High anti-jamming and anti-clutter performances
High performance in searching, tracking and identifying multiple low, small and slow targets in complex electromagnetic environment;
High sensitivity and stable performance;
High resolution and detection accuracy;
Multiple radars can form a circular surveillance network with extended surveillance range;
Advanced background compensation gradient algorithm and embedded soft control filtering technology.
Specifications:
Frequency band: Ku
Detection range: (Pd=0.8 Pfa=10-6)
Armed men: 4km (σ=0.7m2)
Small vehicles: 6km (σ=2m2)
Large vehicles: 10km (σ=10 m2)
Radial velocity of detectable target: 3km/h-72km/h
Range and scope: 240m-15km
Distance resolution: <8m
MTBF: >2000hr
MTTR: <30min
Erect and Roll-up time: <1min
Continuous work time: >7hr
Power consumption: <80W
Transmitted power: 2w
Total weight (excl. battery: 25kg
200MM Thermal Magnetic Camera
Pixel Resolution:
Field Of View Angle: 640x4803.54x2.66 (scene of narrow)
Field of view angle: 12.67x9.52 (wide field of view)
Main body: 436x266x265mm
Controller: 148x50x40mm
Weight: 17kg
